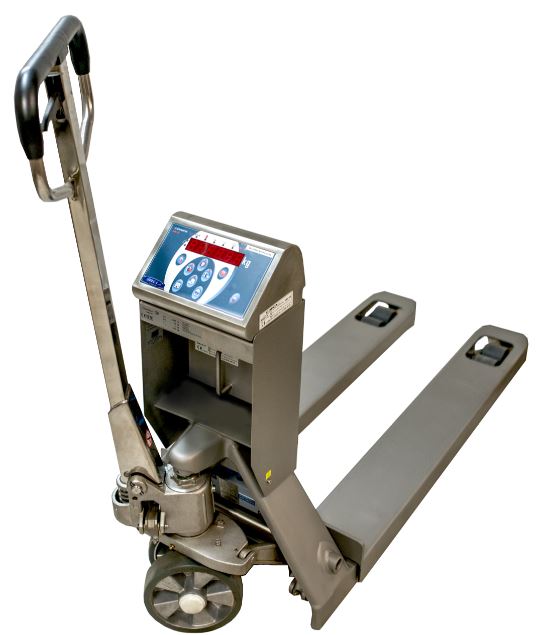

KPZ 71-7 EX Palletweigher
This new explosion-protected pallet truck is ATEX-compliant and can be used where explosive gas and dust mixtures appear. The ATEX certified four load cell weight detection guarantees the best accuracy in all work conditions.
ATEX Pallet Truck for use in hazardous areas
The ATEX KPZ 71-7 EX pallet truck is a robust powder coated steel construction with top fork plate made with stainless steel, with steering wheels and dual front wheels with polyurethane coating and 4 load cells. KPZ 71-7 EX weighs 150kg and has a lifting height from 85 to 205mm. The inside width between the forks is 220 mm and total width is 560 mm.This new explosion-protected pallet truck is ATEX-compliant and can be used where explosive gas and dust mixtures appear. The ATEX certified four load cell weight detection guarantees the best accuracy in all work conditions.
Indicator: KPZ 51E12EX ( possibility to deliver with different model), solid stainless steel housing.Certificate: EU type approved class III.KPZ 71-7 EX ATEX pallet truck comes with a matt polished stainless steel KPZ 51E-12 EX indicator which has an LCD display with backlight and 25mm high digits, including a flat water resistant keyboard with 5 keys, is equipped with an internal rechargeable battery with an operating time of 40 hours and includes a battery charger ( only for use outside of hazardous area ).Housing made from stainless steel, waterproof according to norm IP 66, digital main display , 6 digits, LED high 22 mm, 11 status LEDs, automatic and manual zero adjustment, Gross/net weighing, tare via button, pre-tare over arrow keys, addition memory, date and time modul (unbuffered).Operating temperature:-10 up to + 40°C.
Power supply: akku version ,charging possible outside of EX zone only (charger included).
Functions (optional): Low voltage version 10-32VDC; 1 x external button for tare, setting to zero, data output or activate output; RS 232 or RS 485 interface, customs programming printing design, setpoints, control weighing over 3 LED indicator; analog output: 0 – 10V or 0 – 20mA or 4 – 20 mA, printer connection possible, data transfer wireless, rechargeable battery.
Indication: Quantity,lb, kg, setpoint,1,2,3, center zero, motion, Gross, Net, Low battery, 3rd units.
Weighing system: 4 precision DMS load cells, stainless steel, IP 68, EC approved class III.
Warranty: 24 months on proper material and workmanship features, normal use appropriately
