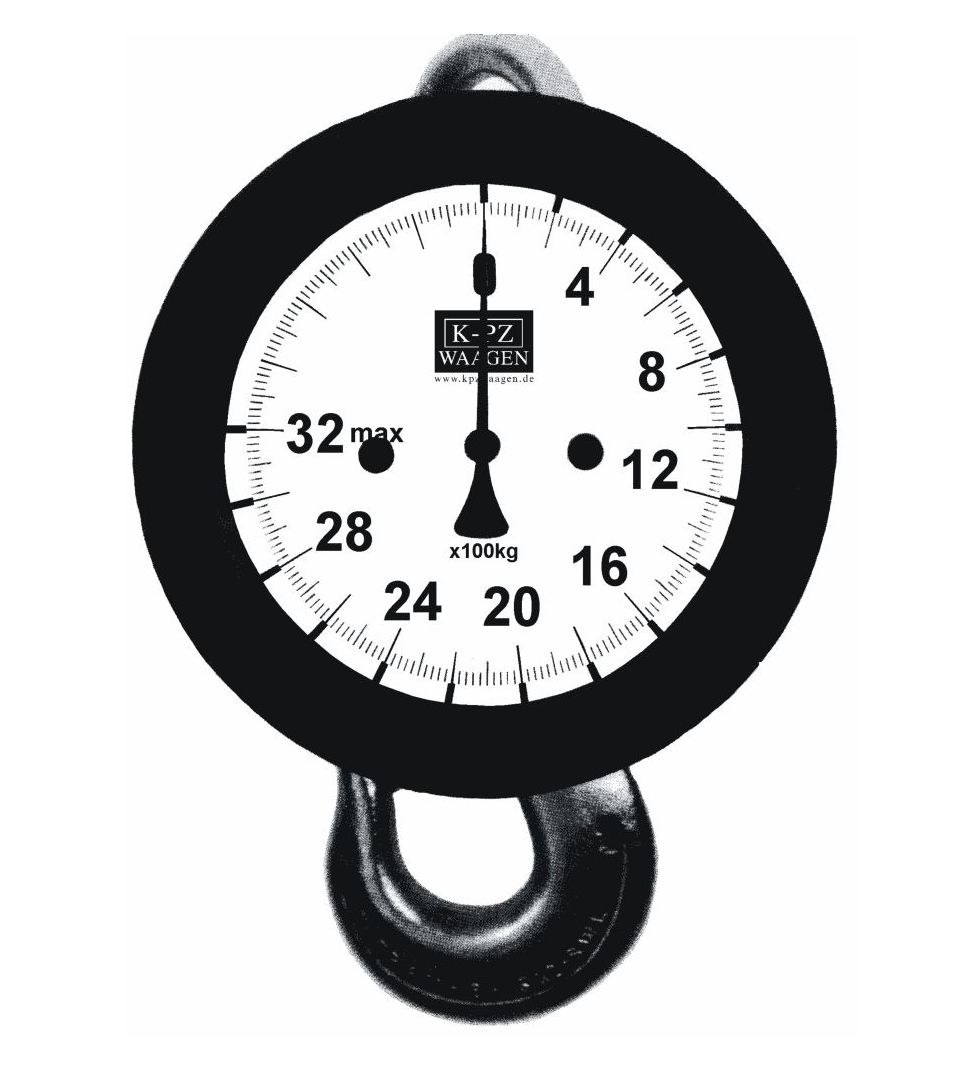

KPZ 3 crane scale
Hydraulic version, maintenance free, inexpensive, robust and compact
Non approved version only.
Construction: robust and compact design with low own weight.
Accuracy : 1 %, Shield: white background, black 12 mm figures, highly visible, with a plexiglass cover framed with rubber ring. The dial is protected with a Flexible front plexiglass. Diameter of dial: approx 160 mm. The stable housing is made of cast brass. With safety hook, maintenance-free hydraulic system. Safety features : All KPZ 3 Crane scales carry a 200 % full carrying capacity and an overload ratio of 500 %. Simple zero & tare adjustment. Scale may easily be adjusted by using the two black buttons until the pointer goes to the zero-point of the scale.
