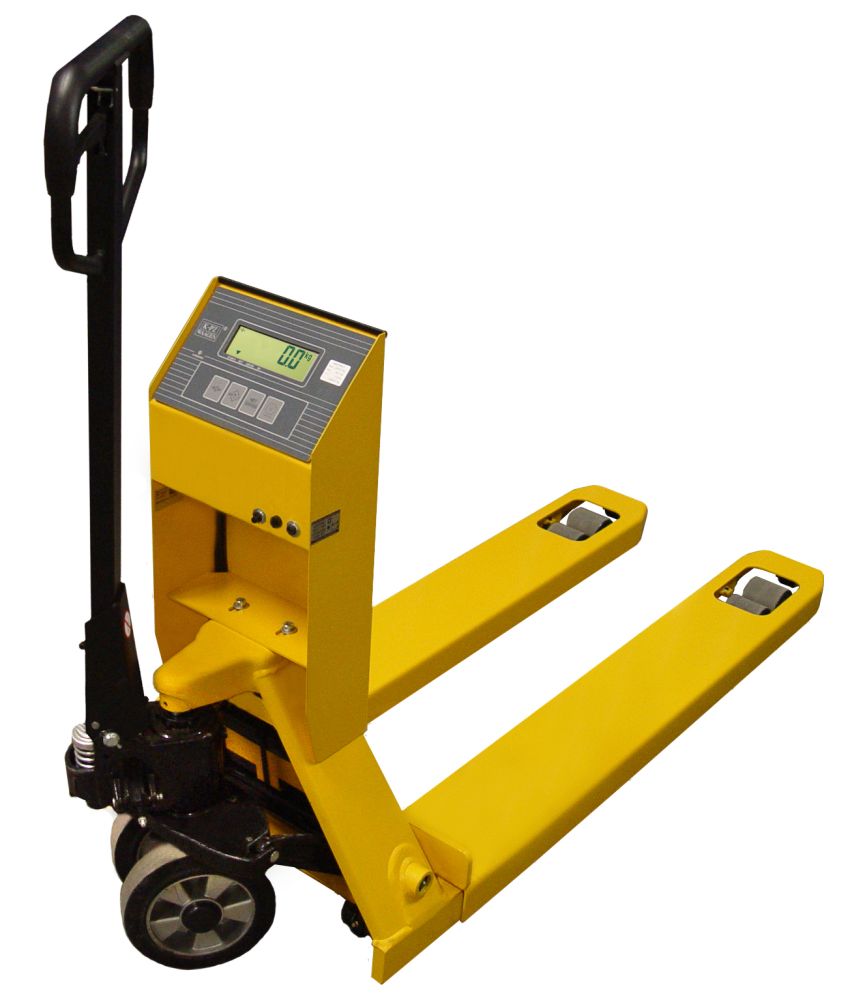

KPZ 71-8 Palletweigher
High quality, for industrial use, long exploitation period, very solid and stable steel construction with steel plate (capacity 2200 kg with forks length up to 1500 mm; forks extension availability up to 2500 mm as an option -extra charge).
Construction: high quality, for industrial use, long exploitation period, very solid and stable steel construction with steel plate, designed for weighing, powder painted, yellow colour (RAL 1003), welded drawbar; strong forks made from 4-mm steel plate (capacity 2.200 kg with forks length up to 1.500 mm; forks extension availability up to 2.500 mm as an option extra charge). Device width: 560 mm, forks length: 1.150 mm, ground clearance: approx 850 mm,total weight approx 142 kg. Safe, proven in industrial use hydraulics. Large, rubber steering wheels, diameter 200 mm. Wheels suspension guarantees stability and movement fluency, built in lubrication grease nipples guarantee long operating life of all movable construction parts. Indicator described below is built in a robust steel housing on height comfortable for operator.
Load cells: High quality load cells KPZ 502E-2, IP 68, OIML C3; EC approval possible.
Certification: EC approval possibility class III, declaration of conformity, approved version.
Indicator KPZ 51E-7 (possibility to deliver different model, choosen by a customer as an option). Built in a stable, robust steel housing, easy to operate keyboard, covered with a dust- and waterproof foil, large function keys, 6 digit LCD-Display with back-light function, easy readable 25mm high digits. Operating temperature –10°C to 40°C.
Power supply: 6V battery, operating time approx 36 hours, re-charging time max. 10 hours (normally carried out overnight). Charging device is included in unit price.
Functions: Zero setting, 100% tare, switch Net and Gross weight, addition function data output (during print), minus indication, LCD backlight (3 settings), targetweight check tolerance, limit value control (limit= range of Low/Ok/High), automatic selftest.Indication: weight, zero setting , tare, stability, charging status, LOW-Bat indication, limit value control.
Options: Please contact us, we will help you to choose an option tailored to your needs.
Alternatively, you can choose from the options below.
Construction options: galvanized construction, special dimensions, forks length from 850 mm to 2.500 mm, forks width up to 900 mm, different capacities, handbrake.
Warranty: 24 months on proper material and workmanship features, normal use appropriately.
