KPZ 2E-06-N IP69K

Bench scale, precise, robust and reliable, for universal use, with or without EC approval.  Stainless steel (material DIN 1.4301),can be used in food and fish industrie, chemical and pharmaceutical industrie, agriculture.





Description

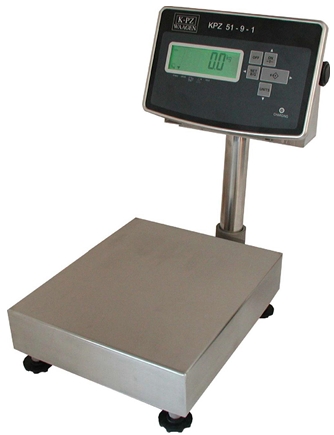

Bench scale type KPZ 2E06NK, IP69K, precise, robust and reliable, for universal use, with or without EC approval.  Stainless steel (material DIN 1.4301)

Construction:  high quality, industrial scale, long service life, stable and solid construction, sainless steel frame made of profile (material DIN 1.4301), with high quality load cells stainless IP69K .

Load cells :  high quality, stainless steel, EC approved DMS type 504E-2, IP 69K (standard), OIML C3,. Cable length between scale and indicator about 2,5m.Adjustable feet. Operating temperature: from –10°C to + 50°C.

Certification: EC approval possibility class III, Declaration of Confirmity.

Indicator: Type KPZ 51E-34K (delivery without indicator possible), can be used in different ways: 1st version: as a mounted stand to the shorter side of scale; 2nd version:as a  mounted stand to the longer side of scale (stand hight 300x400= 400 mm, rest 650 mm); 3rd version: without stand, bench version or screwed to the wall ( in that version wall grip need to be additionally ordered) (cable length about 2,5m). KPZ 51E-34K robust, stainless steel housing IP 69K, can be used in food and fish industrie, chemical and pharmaceutical industrie, agriculture.KPZ 51E-34K is resistant for high pressure( 100bar ) and high temperatures ( up to +80°C) User-friendly, large function keys. LCD display: 6 digit, various symbols, backlight, high of digits 20 mm.High sensitivity sensors,keyboard can be used even with gloves on!!! Operating temperature from –10°C up to +50°C ,storing temperature -20°C up to +50°C. Mains 110/240 V AC 50/60Hz with output  12VDC 1.2A external battery or optional internal battery.

Function: automatic and manual zero setting, switch Net/Gross weight, 100% tare, multiple tare, unit switching, simple piece counting. Possibilty to enter data and bring out data through serial interface (optional): computer functional control , possibility of choosing diffrent exit formatsedition activation : via computer, continuously or after zero come back. Minus indication, LCD backlight, automatic shut off after 0-9 minutes, pre-set value control or limit value control  LOW – OK - HIGH ( any two weight values to choose, tone or light sygnal), electronic stabilization filter, and signal distortion, automatic selftest, error messages.

Indication: zero setting, gross, net, stability, LOW-Bat indication, pre-set/limit value, too small piece quantity or too small weight.

Options: serial interface RS 232, battery, label printer.
