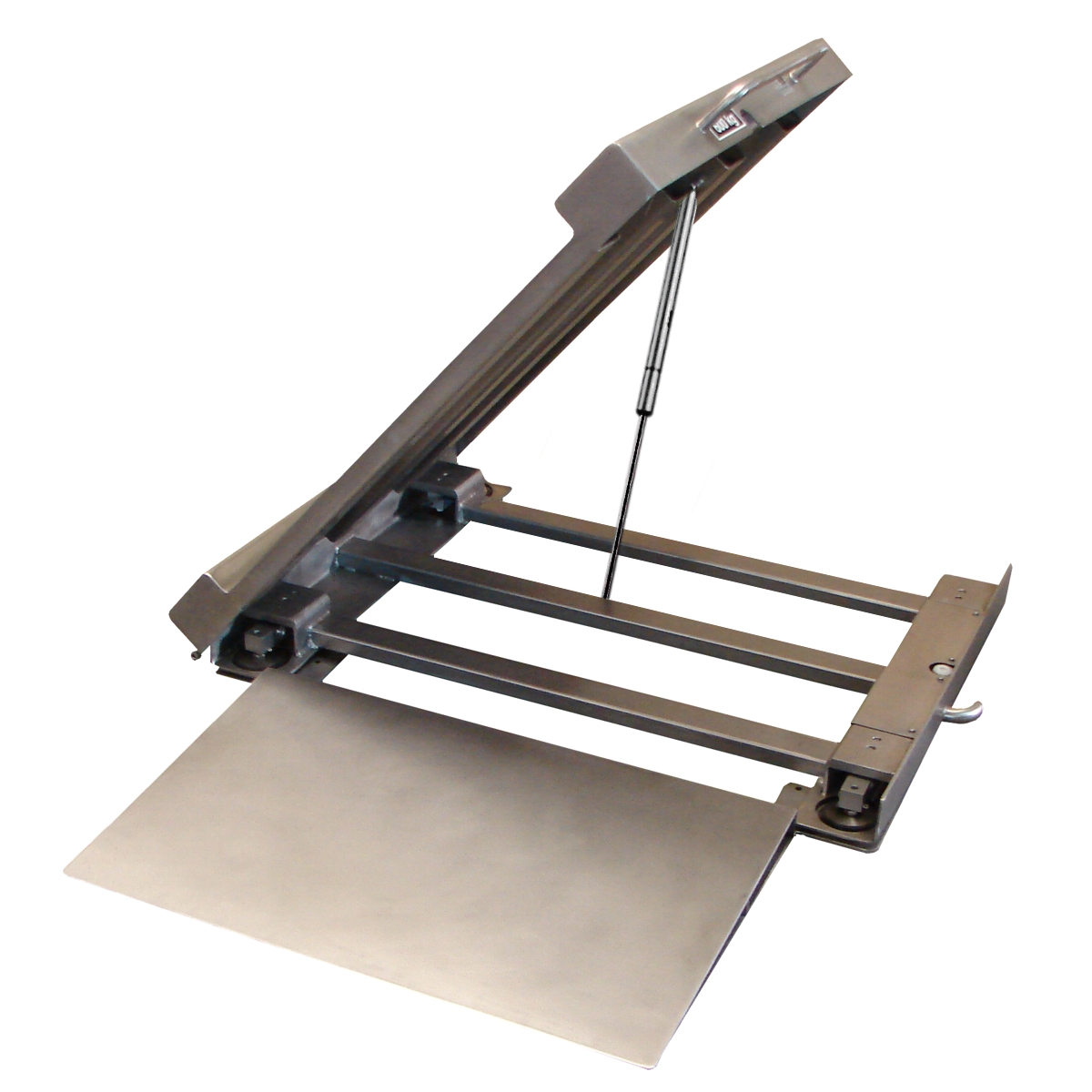

KPZ 2 DNG low profile / drive-through scale / Stainless Steel Hygienic design, Hermetically sealed profile, Opening construction for easy cleaning, - Gas pressure spring. stainless Steel

KPZ 2 DN is a stainless steel 'low profile' platform scale. The design of the scale lowers the loading height from 80-90mm to 45mm, this helps operators to load the scale with heavy goods easily and safely. KPZ 2 DN is manufactured with DIN 1.403 stainless steel and is most popular in the food, pharmaceutical and chemical industries. Platforms are designed for easy loading with the single ramp built into the scale for a compact all in one unit.





Description

Low construction scale, type: KPZ 2DN, for use with or without EU approval.

Low construction scale with drive in option and passing drive option, in special construction with lowered weighing platform. Possibility to easy drive on with heavy load through 1 ramp (standard) or two ramps (option). Platforms are designed for easy loading with the ramp built into the scale for a compact all in one unit.

Construction: robust, welded construction stainless steel (material DIN 1.4301), solid plain top plate of platform made of one piece without welded connection and hole. Special flat construction. High quality industrial platform, long service life, solid and stable construction stainless steel (material DIN 1.4301), Plain top plate of platform made of one piece, with 1 x ramp.

Load cells: High quality load cells DMS type KPZ 502E-2, IP 67,OIML C3. 5 meter cable, sheltered  at way out of scale in case of  mechanical damage.

Certification: EC approval possibility class III, Declaration of Conformity.

Indicator KPZ 51E-9-1: 6 digit 25 mm high LCD-Display,with backlight function, large function keys Pre-set / limit value control, simple piece counting, EC approved class   up to 10.000 e, user-friendly. Operating temperature from –10°C up to +40°C.

Functions: automatic and manual zero setting, switch Net/Gross weight, 100% tare, multiple tare, unit switching, simple piece counting by reference no. 10, 20, 50, 100 i 200. Minus indication, LCD backlight, automatic shutoff after 0-9 minutes, pre-set value control or limit value control  LOW – OK - HIGH ( any two Weight values to choose, tone or light sygnal), electronic stabilization filter, automatic selftest, error messages.

Indication: zero setting, gross, net, stability, LOW-Bat indication, pre-set/limit value, too small piece quantity or too small weight.

LED: charging status.

Power supply: 230 V, battery version (option).

Indicator options:  Please contact us, we will help you to choose an option tailored to your needs .

Alternatively, you can choose from the options below.

Warranty:   24 months on proper material and workmanship features, normal use appropriately.
