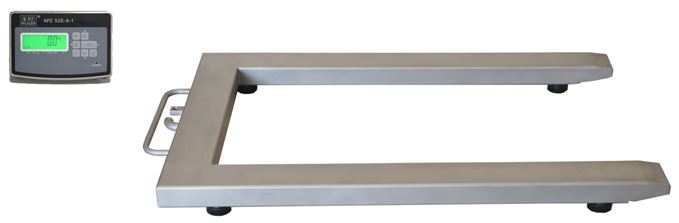

KPZ 1N U-pallet scale Stainless steel,
KPZ 1N Specially designed for forklift/ pallet applications.High quality stainless steel DIN 1.403, construction, made of rectangular pipe, with transport rollers and handle for comfortable transport.Standard KPZ 51E-9-1 indicator included.
Pallet scale type: KPZ 1 N for use with or without EU approval.
Very robust and stable stainless steel construction (material DIN 1.4301) made of rectangular pipe
120 x 60 x 4 mm with transport rollers and handle for comfortable transport make this scales the ideal solution for industry, transport, stock control, warehouse and any other kind of general purpose weighing.
Load cells: high quality DMS load cells stainless steel type 502E-2, IP 68 (standard), OIML C3. Movable feet with adjustable height made of stainless steel. Indicator: KPZ 51E-9-1 (possibility to deliver without indicator), with 5 m cable, sheltered at way out of scale in case of mechanical damage.
Certification: EC approval possibility class III, Declaration of Conformity.
Construction : stainless steel, rectangular profile 120 x 60mm, material 1.4301. Dimension: (outside) 840 x 1260mm with handle 1340mm (inside) 600 x 1140mm. With transport rollers and handle for easy transport.
Weighing system: 4 precision DMS load cells, stainless steel. Regards to solid DMS load cells there are no wearing out parts.
Indicator KPZ 51E-9-1: 6 digit 25 mm high LCD-Display,with backlight function, large function keys Pre-set / limit value control, simple piece counting, EC approved class up to 10.000 e, user-friendly. Operating temperature from –10°C up to +40°C.
Functions: automatic and manual zero setting, switch Net/Gross weight, 100% tare, multiple tare, unit switching, simple piece counting by reference no. 10, 20, 50, 100 i 200. Minus indication, LCD backlight, automatic shutoff after 0-9 minutes, pre-set value control or limit value control LOW – OK - HIGH ( any two Weight values to choose, tone or light sygnal), electronic stabilization filter, automatic selftest, error messages.
Indication: zero setting, gross, net, stability, LOW-Bat indication, pre-set/limit value, too small piece quantity or too small weight.
LED: charging status.
Power supply: 230 V, battery version (option).
Indicator options: Please contact us, we will help you to choose an option tailored to your needs .
Alternatively, you can choose from the options below.
Warranty: 24 months on proper material and workmanship features, normal use appropriately.
