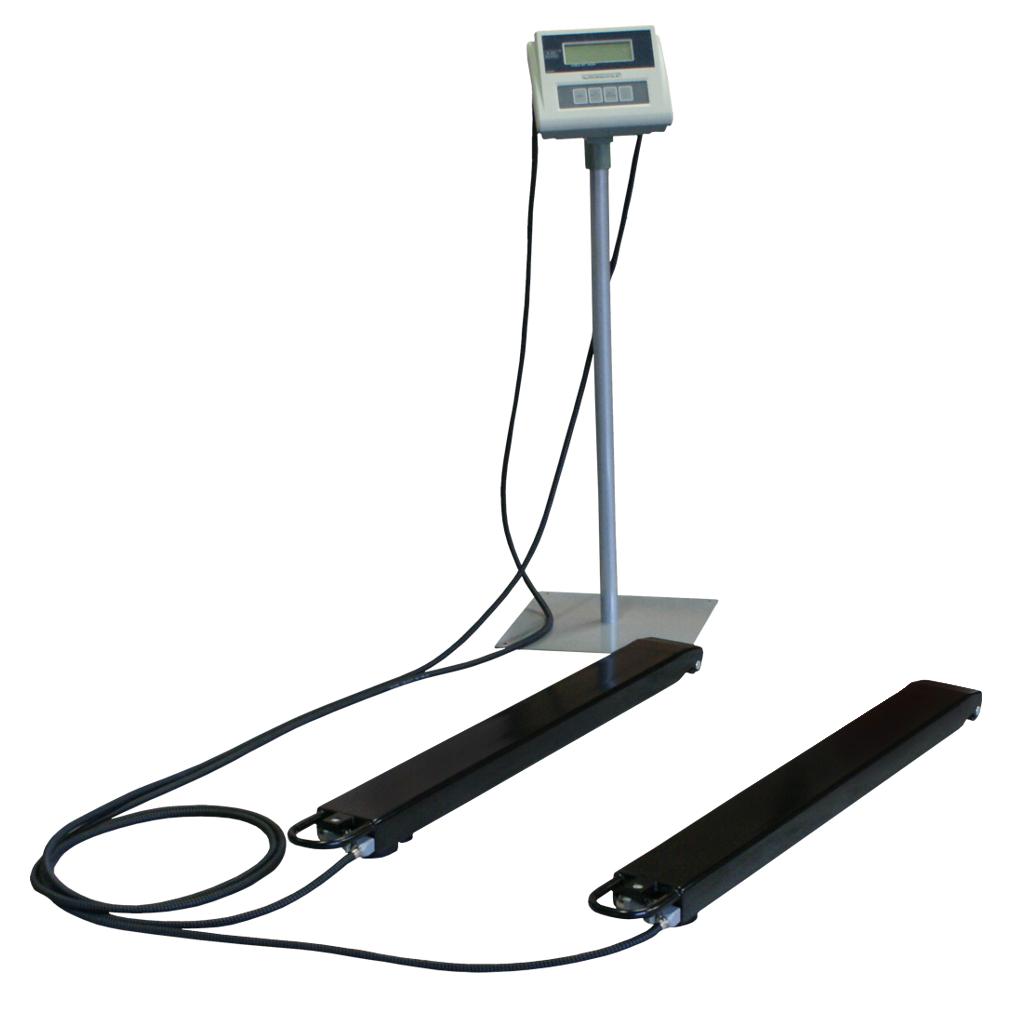

KPZ 1 B beam scale
Two portable bars made of rectangular pipe 120 x 60mm, black powder painted (option: galvanized or stainless construction). Dimension: 1000x120x85mm, 1250x120x85mm, 1500x120x85mm ,with transport rollers and handle for easy transport. Indicator KPZ 51E-8 included.Special flat construction.
Beam scales KPZ 1B for use with or without EU approval.
High quality steel construction, black powder painted, made of rectangular pipe 120 x 60 x 4 mm with transport rollers and handle for comfortable transport make this scales the ideal solution for industry, transport, stock control, warehouse and any other kind of general purpose weighing.
Load cells: High quality load cells DMS type KPZ 502E-2, IP 67,OIML C3. Indicator: 51E-8, with two 5 meter cable, sheltered at way out of scales in case of mechanical damage.
Certification: EC approval possibility class III, Declaration of Conformity.
Construction : rectangular pipe 120 x 60mm, black powder painted ( option: galvanized or stainless construction).Dimension: 1000x120x85 , 1250x120x85 1500x120x85mm,with transport rollers and handle for easy transport. Indicator connection cable: length 5 m. Special flat construction is suitable for ground placing. With regard to solid DMS load cells there are no wearing out parts. Possibility to manufacture other dimensions.
Weighing system: 4 high quality DMS load cells KPZ 502E-2, IP67, EC approval possibility class III.
Standard indicator KPZ 51E-8: easy and comfortable maintenance, solid, robust ABS housing, keyboard covered with a dust- and water-proof foil, with large function keys. Large LCD-Display with backlight allows proper weighing result read-out, to use with almost every industrial conditions.
Functions : Zero, 100% tare (also multiple tare), minus indication, switch Net and Gross weight. Options to set via menu: targetweight check tolerance, limit value control (limit= range of Low/Ok/High), automatic selftest.
Indication : weight, zero setting, tare, stability, charging status, LOW-Bat indication, limit value control.
Power supply: 230 V, battery version (option).
Indicator options: Please contact us, we will help you to choose an option tailored to your needs .
Warranty: 24 months on proper material and workmanship features, normal use appropriately.
